Laser cut aluminum facades aluminum cladding metal sheet exterior wall cladding
Product Details
Place of Origin:China
Brand Name:M-City
Certification:
Model Number:aluminum laser cut 05
Payment & Shipping Terms
Min Order:100square meters
Price:USD25-USD60/square meter
Packaging:export standard packing
Delivery Time:15-30days depends on the quantity
Supply Ability:60000square meters per month
Description

Laser cut  aluminum facades aluminum cladding metal sheet exterior wall cladding

M-CITY aluminum cladding specifications

Aluminum panels are made of Aluminum alloy 3003 (aluminum sheet), As a kind of facades, used for wall protection and non-lighting walls, instead of mosaic and general sandblasting facade. With its light texture, good strength characteristics in the use of high-rise buildings have advantages, due to various loads at high-rise buildings all the time, especially by the wind pressure, mosaic Easy to fall off, because of the large wind pressure and deformation. aluminum panel based on its unique advantages and can be used in high building widely.

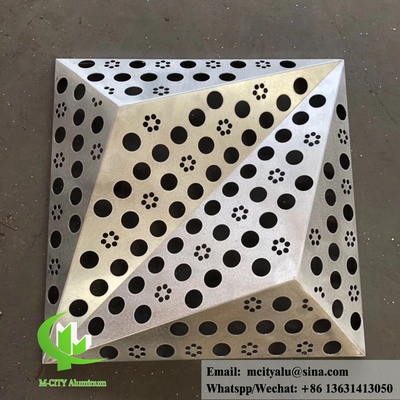

3D aluminum facades design

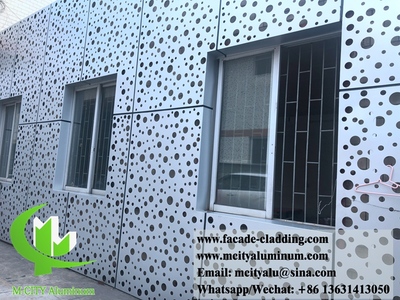

Aluminum facades projects

Materials:

Aluminum alloy 3003 series

Standard size:

1000mmx2000mm

Other size:

Max. Width: 1500mm Max. Lenght: 5000mm

Thickness:

1mm， 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm

Surface treatment:

Powder coated, PVDF paint

Color:

Any RAL colors, wooden grain color, stone color, etc.

Coating:

Akzo Nobel, PPG, etc.

Application:

Cladding, Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers etc.

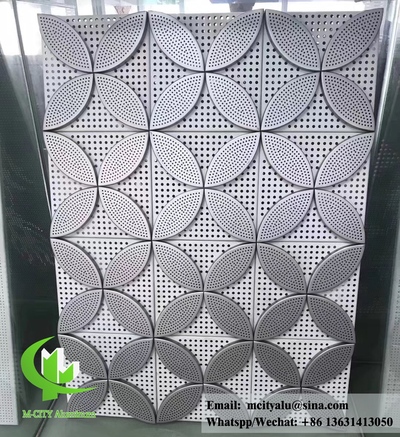

Patterns

Any patterns can be made, just supply us the drawing or picture

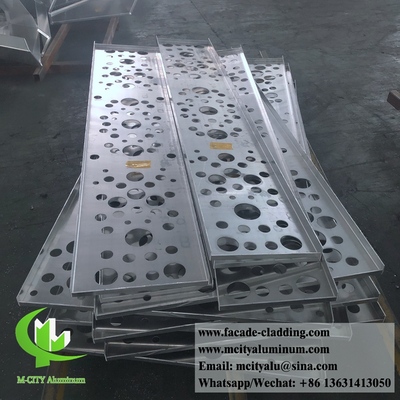

Container loading (export standard)



Applications of solid aluminum panel

1, Aluminum panel is the most popular for cladding and decoration of curtain walls, façade systems, ceilings, partitions and roofs of buildings, especially the offices and hotels

2, Aluminum panel is also widely used for cladding and decoration of subways, tunnels, airport and railway buildings

3, With customized designs, Aluminum panel with perforations or engraved patterns is also very popular for decoration of buildings.

1. what thickness is ok?

Aluminum is one kind of metal, aluminum thickness is 1-12mm, in generally, for facade, we suggest 3mm or 2.5mm, but depends on the panel size.

2. what's the difference between powder coated, polyester paint and pvdf paint?

These are three types surface treatment, powder coated is the cheapest one, polyester is in the middle, and the pvdf is the most expensive one. For the quality,the powder coated is under 10 years. Polyester is 10 years, pvdf is 15 years quality guaranteed.

Powder coated and polyester is suitable for interior, pvdf is suitable for exterior.

3. what is the coating mean?

Coating is a surface treatment. They are powder coating, polyester, PVDF.

Powder coating is the cheapest way, PVDF is more expensive. PVDF coating can prevent the rain and wind, stay bright after years.

4. Any pattern is ok?

Most is ok, except some patterns have not supported point. You can choose our patterns, or provide your own design,

5. what is the price?

Because the aluminum facade panel can be customized, so, we didn't have the exact price for you. After customers provide the information of thickness, color, pattern, cover size, coating way, then we can quote the exact price.
